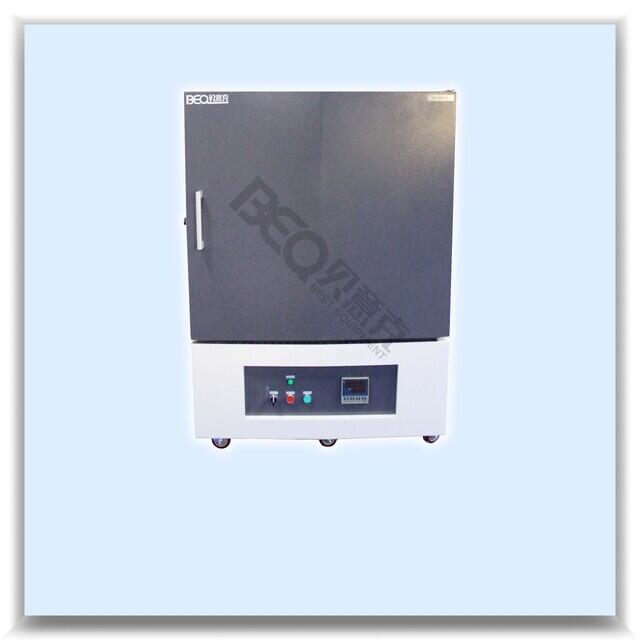

①M(fèi)F-1700C is a non-standard custom high temperature box furnace.
MF-1700C是一臺非標定制的高溫箱式爐。
②According to the requirements of customized heating furnace, silicon molybdenum rod, double-layer air-cooled shell, instrument and electrical control components.
可根據要求定制加熱爐膛、硅鉬棒、雙層風冷殼體、儀表電器控制組件等。
③Electrical control using built-in temperature control table, the temperature control is accurate and easy to operate.
電氣控制采用內置控溫儀表，其控溫精準且操作直觀簡便。
④Instrument using domestic famous brand, accurate and reliable quality.
儀表采用國內優質品牌，質量精確可靠。
⑤It is surrounded by load-bearing frame and sheet bl.
采用承重框架結合鈑金包圍形式。
⑥The color of furnace body and door panel is fashionable highlighter white.
爐體和門板顏色采用時尚高光白。
⑦The equipment is simple and stable, with intuitive and convenient operation, accurate temperature control and other perbance.
設備簡約又不乏穩重，更具備操作直觀方便、控溫精確等性能。
|
Power 輸入電源 |
Power rated：25KW 額定功率：25KW Rated voltage：380V 額定電壓：380V |
|
Working Temperature 工作溫度 |
Max. Temperature: 1700 °C zui高溫度：1700℃ Continuous working temperature: ≤1600℃ 持續工作溫度：≤1600℃ Recommended heating Rate: 1400℃≦10℃/min；1400℃到1600℃≦5℃/min；1600℃以上≦2℃/min 推薦升溫速率：1400℃≦10℃/min；1400℃到1600℃≦5℃/min；1600℃以上≦2℃/min |
|
Temperature Controller 控溫方式 |
PID automatic control and auto-tune function 模糊PID控制和自整定調節 30 programmable segments for precise thermal processing 智能化30段可編程控制 |
|
Cavity size 腔體尺寸 |
400mm*400mm*400mm（64L) |
|
Heating Elements 加熱元件 |
10 pieces of silicon and molybdenum rod (Φ6*380*220*30)；Single 2.5KW 硅鉬棒10支（Φ6*380*220*30）；單支2.5KW |
|
Temperature Accuracy 控溫精度 |
+/- 1℃ |
|
Thermocouple 熱電偶 |
Type B thermocouple B型熱電偶 |
|
Furnace body size 爐體尺寸 |
900*830*1275mm（L*W*H） |
|
Net Weight 凈重 |
285kg |
