Features & Benefits

• Easy-to-Use and Accurate AC/DC Current Measurements
• DC to >50 MHz Bandb
• Core Jaw Diameter of 5 mm (0.2 in.)
• Accuraby Measures Current Levels as Low as 10 mA per Division
• High Accuracy with Typically Less than 1% DC Gain Error
• Split-core Construction allows Easy Circuit Connection
• Low Noise and DC Drift
• TCP0020
• 20 ARMS Maximum Current Capability
• 100 A Peak Pulse Current Capability
• Connects Directly to Oscilloscopes with the TekVPI? Probe Interface
• Provides Automatic Units Scaling and Readout on the Oscilloscope Display
• One-button Degauss and AutoZero Control for Ease of Use
• Easy Access to Scope-displayed Probe Menu for Probe Setup Control and Operating Status Inbation
• Remote Control Capability through TekVPI Oscilloscope
• TCP2020
• 20 ARMS Maximum Current Capability
• 100 A Peak Pulse Current Capability
• 10 mA/mV Sensitivity
• BNC Output Connects to Most Oscilloscopes and Other Measurement Equipment (>100 k? Termination Required)
• Degauss Button and Thumbwheel for DC Offset Adjustment
• Powered by an AC Adapter
• TCP202A
• 15 ADC + Peak AC Maximum Current Capability
• 50 A Peak Pulse Current Capability
• Connects Directly to Oscilloscopes with the TekProbe? Interface
• Provides Automatic Units Scaling and Readout on the Oscilloscope Display
• Degauss Button and Thumbwheel for DC Offset Adjustment
• Safety Certified

Applications

• Power Supplies
• Semiconductor Devices
• Power Inverter/Converters
• Electronic Ballasts
• Industrial/Consumer Electronics
• Mobile Communications
• Motor Drives
• Transportation Systems

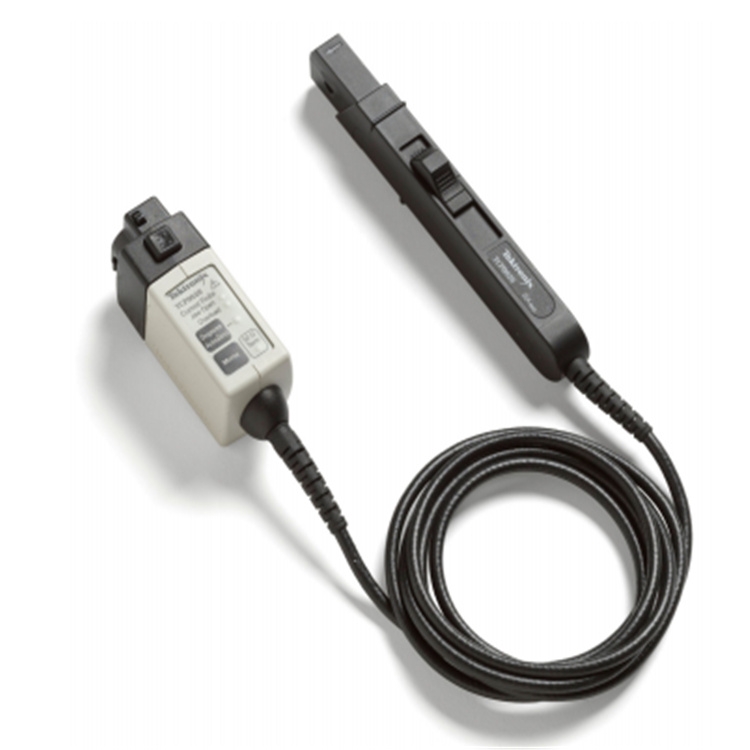

TCP0020, TCP2020, TCP202A

The TCP0020, TCP2020, and TCP202A are a family of high-perbance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI? probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe? probe interface. The TCP2020 is designed for use with any instrument with BNC bs and >100 k? b termination.

These AC/DC current probes provide sufficient perbance to support 50 MHz measurement system bandb. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range, while the TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.

Ordering Inbation

TCP0020

AC/DC Current Probe.

Includes: Instruction Manual (English) (071-3002-xx), Probe Ground Lead – 6 in. length (196-3120-xx), Nylon Carrying Case (016-1952-xx).

TCP2020

AC/DC Current Probe.

Includes: Instruction Manual (English) (071-3002-xx), Probe Ground Lead – 6 in. length (196-3120-xx), Nylon Carrying Case (016-1952-xx), AC Adapter (specify power plug option when ordering).

TCP202A

AC/DC Current Probe.

Includes: Instruction Manual (English) (071-3002-xx), Probe Ground Lead – 6 in. length (196-3120-xx), Nylon Carrying Case (016-1952-xx).

Power Plug Options (TCP2020 Only)

Service Options

Recommended Accessories
