1. For the dangerous sites with explosive air mixture: 1 division, 2 division;
2. Flammable gas, steam class: ⅡA、ⅡB;
3. Temperatures classification: T1~T4;
4. Indoor and outdoor (IP54).
1. 本產品為復合型，開關箱采用隔爆型結構，母線箱及出線箱采用增按型結構。
2. 鑄鋁合金外殼，內裝高分?jǐn)嘈⌒蛿嗦菲骰蛩軞な綌嗦菲?。有C45、C65、CM1可供選擇。
3. 具有過載短路保護功能。
4. 有特殊要求可特制。
5. 鋼管或電纜布線均可。
6. 符合GB3836-2000、IEC60079, GB12476.1-2000、IEC61241標準要求。

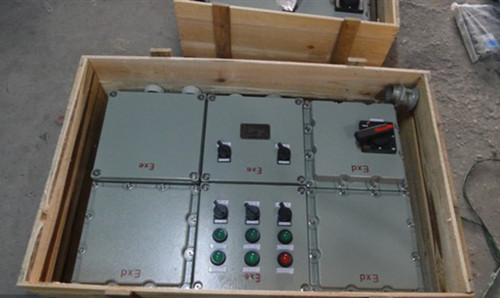

1. The box is of combined type, its switch compartment is of explosion-proof structure, busbar and outlet compartment adopt safety-increased structure.
2. The shell is made of diecasted Al-alloy, inside is installed MCB or MCCB. Has C45, C65, CM1 to be supplied.
3. With protections of overload and short-circuit.
4. Special type can be made.
5. Suitable for both steel pipe and cable wiring.
6. Suitable for GB3836-2000、 IEC60079、GB12476.1-2000、IEC61241 standard request
并注明進出線方向，進出線規格及對應的數量。
The user shall indicate circuit number and its relative current, number of CB pole. if need to install chief circuit switch, its current, inlet or outlet specifications
and number shall be noted.
型號
Type
額定電壓
(V)
Rated
voltage
主回路額定
電流(A)
Rated current
of main
circuit
支路數
Branch
number
主回路總
開關數(臺)
Switch No.
of main
circuit
