CIRS 731-HN頭部模體
The CIRS Proton Therapy Dosimetry Head is an anthropomorphic head phantom designed for commissioning and treatment planning system (TPS) verification with any conbal or IMRT Proton Therapy system1.
The phantom is constructed of CIRS tissue-equivalent materials, which mimic reference tissues within 1.5% for protons ad within 1% for photons from 50 KeV to 15 MeV. The Proton Therapy Head can be used during all standard IMRT procedures from CT image acquisition to proton beam delivery verification1,3.
Tissue equivalency of detailed internal structures makes the phantom ideal for treatment plan buation in high density-gradient bs, which are specifically important in proton therapy2, such as air cavity vs. bone structures. Internal structures include brain, bone with cortical and trabecular distinction, larynx, trachea, fully-open sinus cavities, nasal and mouth cavities, and teeth with distinct dentine, enamel and root structure. Tel：0755-22934009
Model 731-HN approximates the average male human head in both size and structure to allow for intuitive set up with any patient bing or fixation device.

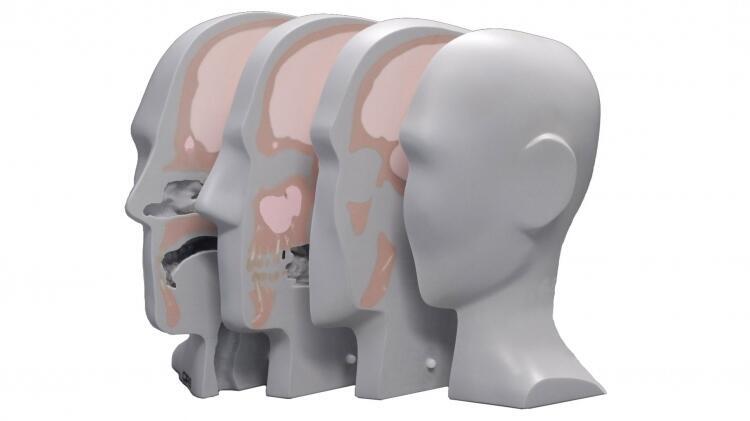

One half of the phantom is sectioned in 2cm increments for three film bs in the cranio-caudal direction starting from the approximate center of the sagittal plane. Because slices are orthogonal to the CT axial plane, artifacts caused by residual air gaps are noticeably reduced compared to standard axial slices. Tel：0755-22934009
Proton system commissioning is enhanced by placement of a tungsten BB in a molar and a titanium prosthesis attached by two screws at C3 and C5 vertebra.
美國CIRS 731-HN頭部模體，CIRS 731-HN頭部體模特點:
Detailed internal anatomy including bone and air Tel：0755-22913855
Three film bs in sagittal direction
Tissue Equivalent for protons and photons
