| 焊芯直徑：1.0---6.0（mm） | 硬度HRC：30 | 焊接電流：無（A） |
| 工作溫度：800（℃） | 加工定制：是 | 材質：銅 |
| 產地： | 類型：銅及銅合金焊條 | 型號：BCu60Zn |
| 直徑：1.0--6.0（mm） | 電流幅度：無（A） | 適用范圍：鐵與鐵焊接 |
| 品牌： | 長度：500--1000（mm） | 藥皮性質：多種可選 |
| 金屬：30 |
銅鋅釬料Copper-zinc filler bls
使用說明 Operation Introduction
銅鋅合金釬料主要用于氣體火焰、高頻、電阻、爐中等釬焊方法，釬焊銅、銅合金以及鋼、鑄鐵、硬質合金等。
釬焊前必須嚴格清除釬焊處及釬料表面的油污、氧化物等污物，釬焊接頭的最好間隙為0.025~0.1mm。釬焊時需要配合釬劑共同使用，方可獲得良好的釬縫。銅鋅半用氧——乙炔焰釬焊時，釬焊加熱時間力求最短。并避免過熱，以免釬料中鋅的蒸發和接頭處過分氧化而形成多孔釬縫。
|
The copper-zinc alloy filler bls are mainly adopted in the oxyfuel gas welding,high frequency welding,furnace welding,and used to braze the copper,copper alloy,steel,cast iron and hard alloy etc. Before brazing,you must b away all dirt very well on the brazed place and on the surface of b to be brazed such as greasy dirt,oxide and so on.Thebest brazed joins space is between 0.025mm to 0.1mm.In order to get good braze,you need make up the right flux in the process of welding. Theheat time should be shortest as possible and be avoided overheat so as not to the evaporation of zinc and the over-oxidation in the joint where will be bed the braze with many holes when these products are brazed in the oxyfuel gas welding.
|
產品的規格 Product Specification

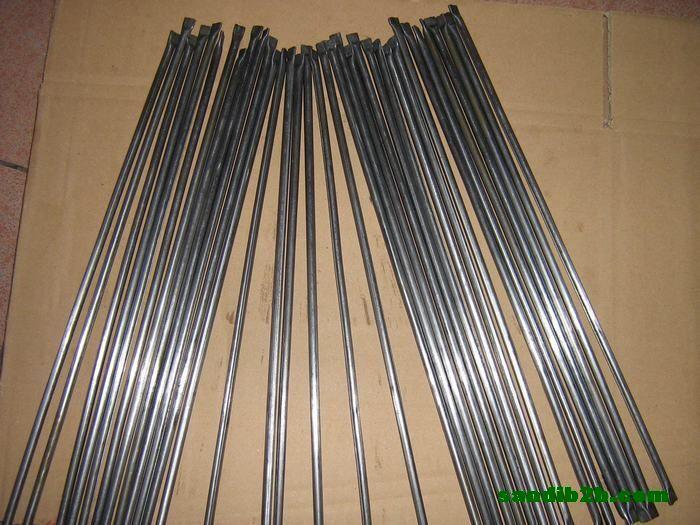

銅鋅釬料主要規格為￠1.2mm、￠1.6mm、￠2.0mm、￠2.5mm、￠3.0mm的焊條，亦可根據客戶要求生產成￠1.0mm以上的盤絲、焊環。
|
The main specifications of the copper-zinc bls are these brazing rods whose diameters are 1.6mm,2.0mm,2.5mm and 3.0mm.At the same time,we also produce brazing,wires and brazing rings whose diameter are more than 1.0mm in accordance with the customers demands. |
銅鋅釬料基本數據The basic date of Copper-Zinc series filler bls
|
釬料牌號 BrazingAlloys |
化學成分Chemical Comb(﹪) |
熔化溫度 MeltingRange,℃ |
釬焊溫度 Working Temperature,℃ |
釬料強度 Trensile N/M㎡ |
||||||
|
Cu |
Mn |
Ni |
其他 Other |
Zn |
雜質總量 Allimpurities |
固相線 Solidus |
液相線 Liquedus |
|||
|
BCu |
>99.9 |
/ |
/ |
/ |
余量 |
<0.1 |
1083 |
1083 |
1100~1150 |
|
|
BCu58ZnMn |
57~59 |
3~5 |
/ |
Fe0.15 |
880 |
909 |
930~960 |
|
||
|
BCu60ZnSn-R |
59~61 |
/ |
/ |
Sn1.0 Si0.25 |
890 |
905 |
900~960 |
343 |
||
|
BCu62ZnNiMnSi-R |
61~63 |
/ |
/ |
Sn0.1 Si0.2 |
853 |
870 |
880~900 |
|
||
|
BCu62Zn |
61~63 |
/ |
/ |
Sn0.7 Si0.2 |
890 |
905 |
900~960 |
313 |
||
|
BCu51ZnNi |
50~52 |
少量 |
9~11 |
Si少量 |
921 |
935 |
930~980 |
|
||
|
BCu57ZnNi |
56~58 |
少量 |
4~5.5 |
Si少量 |
560 |
910 |
910~960 |
|
||
注：本表未列出之其他牌號釬料，參照有關國家或國外先進標準生產，亦可根據客戶的使用要求設計釬料配方生產。
