| 10mHz∼20kHz |
|
 |
10個測量點 測量頻率、積分次數等測定條件、以及合格范圍可從序號0到9、最多設定10個點，然后自動地按照次序進行測量。 |
|
判定功能 增益和相位的測定值，如果在預設范圍內，就會顯示出“GO"，如果超出預設范圍、則會顯示“OVER" 或“UNDER"。 |
|
各測量點預設內容，存儲在后備電池之中。 |
|
鎖定功能 可以鎖定控制鍵，以免因錯誤操作而改變測定條件。 |
|
GPIB、遙控I/O |
|
低價格 |

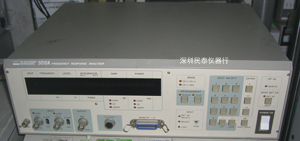

| 5010A | FRA5020A | |
| Oscillator | ||
| Frequency resolution | 4 digits | 4 digits |
| Output waveb |  |
|
| Output voltage | 10mV to 5Vrms | 10mV to 5Vrms |
| Isolation voltage | - | - |
| Analyzer | ||
| No. of b channel | 2 | 2 |
| Input voltage range selection | Auto ranging | Auto ranging |
| Isolation voltage | ± 14.2V (floating) | ± 14.2V (floating) |
| Analysis mode | CH1/OSC, CH1/CH2 | CH1/OSC, CH1/CH2 |
| DC bias elimination | Automatically eliminated over the entire frequency range | |
| Integration cycles | 1 to 100 | 1 to 100 |
| Judgement function | UNDER, GO and OVER | - |
| Display device | Indicator tube | CRT (green) |
| Display mode | log R • θ, numerical | Nyquist, Bode and Nichols diagram, numerical |
| Miscellaneous | ||
| External display device | - | video printer, plotter (HPGL) |
| Memory | 10 spots | 10 panel settings and 2 measurement data |
| Interface | GPIB | GPIB |
| Power requirements | AC100, 120, 220 or 240V switchable | AC100, 120, 220 or 240V switchable |
| Dimensions (mm) | 432(W) X 132.5(H) X 400(D) | |
| Weight | Approx. 9.5kg | Approx. 12.5kg |
