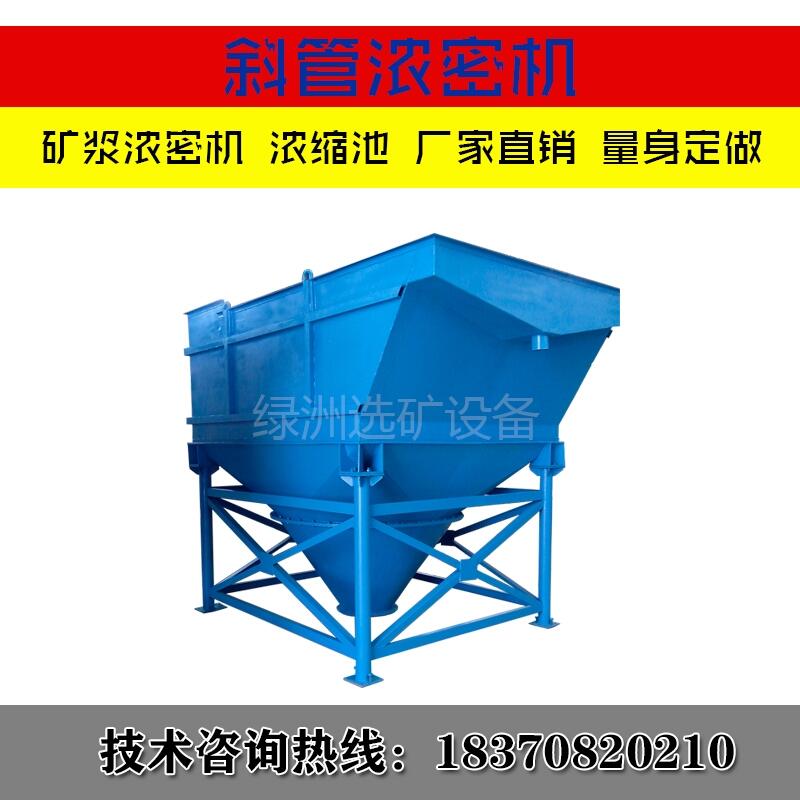

斜管式節能濃密機?Inclined tube Thickener
?
?????斜管式節能濃密機,在總結傳統的周邊(中心)傳動型濃密機工作原理,特點和淺層沉降理論基礎上研究開發的沉降濃縮(分級)設備.該設備體積小、占地少、無動力、投資少、使用成本低、沉降濃縮效率高.適用金屬、非金屬選礦廠、建材、化工等行業的排污，脫泥脫水作業,近年來已在鎢、錫、金等稀貴金屬選礦廠廣泛推廣使用。
?
?
We have developed a new high effect Inclined tube Clarifiers which has advantage of small size, less investment, low cost of operation, high thickening efficiency. Widely applied to in the sewage treatment of bls, in?bllic washing plant, building materials, chemical industry. Currently our Inclined tube Clarifiers Widely used in tungsten,gold,?tin etc rare bls plant。
?
|
型號Model |
尺寸Dimension (mm) |
處理量Capacity(24h) |
水回收Water recycling(24h) |
|
LZTY1㎡ |
1700×1245×2610 |
50—150 t / d |
100—150 t / d |
|
LZTY5㎡ |
3580×2350×3500 |
300—800 t / d |
500—1000 t / d |
|
LZTY10㎡ |
7160×2350×3500 |
500—1500t / d |
1000—1500 t / d |
