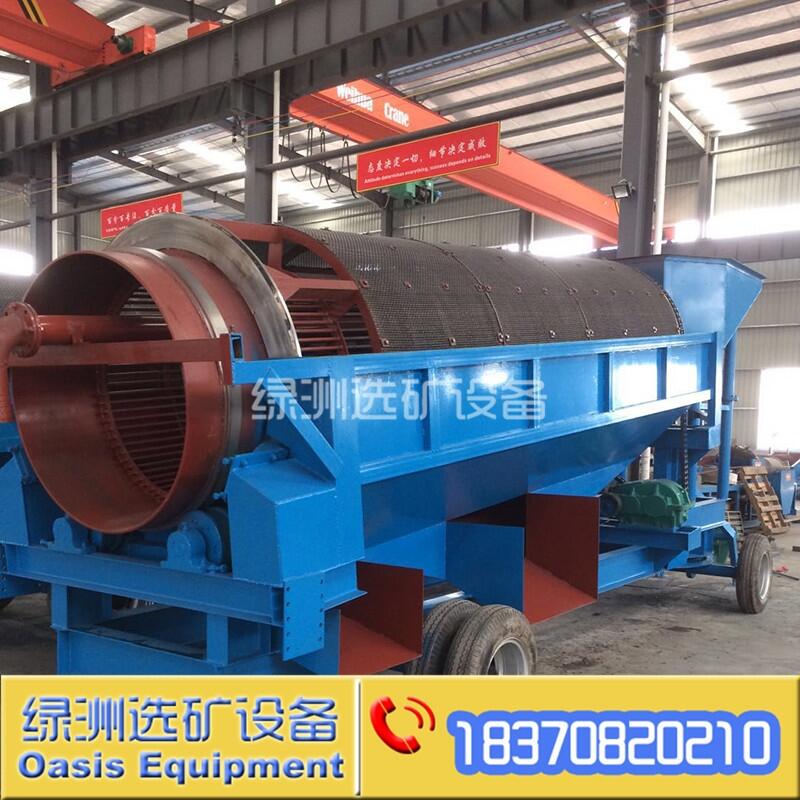

圓筒篩Trommel Screen(滾筒洗礦機Rotary Drum Screen)
滾筒篩為各種各樣的原料提供了一個簡單,高xiao和經濟的解決方案,也為后續的選礦工藝提供優化,這種方法有助于減少操作工序和降低投資成本和提高產品質量,同時允許快速和大批量加工,經過處理后的原料可以直接進入各種各樣的選礦設備,如離心選礦機,螺旋溜槽,跳汰機等Drum screen provide a simple,efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery.This b of screening helps to reduce operating and investment cost and to increase product quality,while allowing rapid and large volume processing。
|
型號Model |
處理能力Capacity |
功率Power |
滾筒直徑Diameter |
滾筒長度Length |
篩網大小Screen size |
外形尺寸Dimension |
重量Weight |
|
LZGT0610 |
5-10 t/h |
2.2 kw |
600 mm |
1000 mm |
3～50 mm |
2520/1020/1860 mm |
1600 kg |
|
LZGT1015 |
10-20 t/h |
4.0 kw |
1000 mm |
1500 mm |
3060/1400/2145 mm |
2200 kg |
|
|
LZGT1020 |
20-25 t/h |
5.5 kw |
1000 mm |
2000 mm |
3460/1400/2145 mm |
2800 kg |
|
|
LZGT1225 |
25-35 t/h |
7.5 kw |
1200 mm |
2500 mm |
4146/1600/2680 mm |
4200 kg |
|
|
LZGT1530 |
35-50 t/h |
11 kw |
1500 mm |
3000 mm |
4460/1900/2820 mm |
5100 kg |
|
|
LZGT1545 |
50-70 t/h |
15 kw |
1500 mm |
4500 mm |
5960/1900/3080 mm |
6000 kg |
|
|
LZGT1848 |
70-90 t/h |
22 kw |
1800 mm |
4800 mm |
6500/2300/4000 mm |
7500 kg |
|
|
LZGT2055 |
90-120 t/h |
30 kw |
2000 mm |
5500 mm |
7500/2500/4000 mm |
8600 kg |
