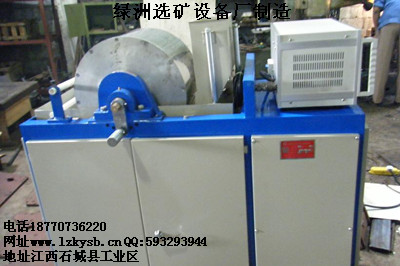

試驗室鼓形濕法弱磁選機技術參數
Technical Parameter of laboratory Drum Wet Low-intensity Magnetic Separator
XCRS濕式弱磁選機用于金屬選礦實驗室，礦業工程實驗，中間實驗廠，它利用濕式方法對細粒磁性礦石進行磁選，選別形式為順流。磁選機體積小，重量輕，操作簡單。該設備不宜進行帶有腐蝕性液體的選礦試驗。本產品由原地礦部唯一指定企業生產，執行行業標準。
該機轉鼓內裝開式磁系，當給礦時能迅速的分選出磁性礦物，磁性礦物在槽體中被磁力吸在鼓面上，受磁力攪拌下甩掉污泥，最后隨鼓面旋轉借助于沖水排出機外。
XCRS Wet Magnetic Separator is mainly desgned for labs for netallic mineral processing.Tt conducts concurrent magnetic separation of fine-grain ores with strong magnetism by wse of Wet Method.It is small in volume,light in weight,simple in operation and convenient in maintenance.However,it is unsuitable to be used in beneficiation by the ber corrosive. The product is produced by the only enterprise designated by the ber Ministry of Geology and Mineral Mineral Resources,in compliance with the Industrial standards
Drum machine built with open magnetic system, as to the mine quickly when the sub-elected magnetic minerals, magnetic minerals in the tank was in the dark magnetic suction surface, get rid of sludge by magnetic stirring and finally with the drum heads With flush discharged outside the rotating machine.
型號Model |
單位 Uite |
XCRS 400/300 |
磁鼓尺寸Magneric impeller size |
mm |
400/300 |
磁鼓轉速Rotating speed |
r/min |
25 |
處理量Caparating size |
kg/h |
20-60 |
給料粒度Feed size |
mm |
3 |
磁場強度 Intensity |
GS |
1250(100KA/m)無級可調 |
電壓 Voltage |
V |
380 |
功率power |
kw |
0.25 |
配套輔機Supply equipment |
激磁電源1臺 |
|
外形Overall dimensions |
mm |
783/600/1200 |
重量Weighe |
kg |
250 |
