試驗室球磨機技術參數

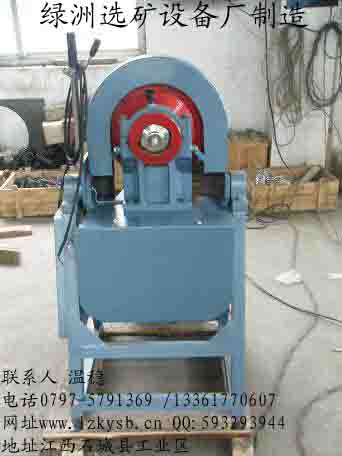

Technical Parameter of laboratory XMQ Cone ball Mill
XMQ錐形球磨機適用于實驗室濕法磨細礦石或其它物料之用。適用于各種金屬和非金屬礦石原料化驗試樣的粉碎加工，凡需做化驗粉碎加工的地質、礦山、冶碳、煤炭、建材和電力部門的生產，單位均可選用，同時用于涂料、油墨、燃料、食品工業部門超細磨加工。本產品由原地礦部唯一指定企業生產，執行行業標準。
該實驗?zāi)サV設備可任意設置磨料時間，也可用在干、濕磨，采用變頻技術，調速范圍寬，磨料、混料、均勻樣樣方便，設備安裝不需地基處理，噪音低，無粉塵污染，工作清潔方便，研磨密封性能好，一般進行礦石可選性實驗研究和人工重砂磨礦石時采用該棒磨機比較合適。
本設備一次磨礦量大，給料，出料，筒體電動控制，無需手動，磨礦時間可任意設置。
XMQ Series Cone Ball Mill is a lab.grind equipmet for wet fine grinding of ore.It is applied in labs for processing and fine grinding of artifical placer materials and ores in bllurgical,building material,chemical,light,coal,water conservancy,electric power,agricultural and geological industries.The product is produced by the only enterprise designated by the ber Ministry of Geology and Mineral Mineral Resources,in compliance with the Industrial standards
The experiment of grinding equipment, grinding time can be arbitrarily set, but also can be used in dry, wet grinding, using frequency conversion technology, speed range is wide, abrasive, mixing and even everything easy installation without foundation treatment, low noise, no dust pollution, to facilitate the work of cleaning, polishing sealing perbance is good, ordinary ore optional experimental study and manual re-sanding of ore used in the rod mill more appropriate.
The grinding equipment, a large amount of feeding, discharging, cylinder power control, without manual, grinding time can be arbitrarily set
型號Model |
單位Uite |
XMQ150/50 |
XMQ240/90 |
XMQ350/160 |
筒體尺寸 |
mm |
150/50 |
240/90 |
350/160 |
容積Volume |
L |
1 |
6.25 |
21.58 |
磨礦量Capacity |
g |
200 |
1000 |
4000 |
給料粒度Feed size |
mm |
3 |
3 |
3 |
排料粒度Rarticle size |
mm |
0.074 |
0.074 |
0.074 |
筒體轉速Drum speed |
r/min |
110-114 |
94-98 |
60-64 |
功率rower |
kw |
0.25 |
0.55 |
1.1 |
外形Overall dimensions |
mm |
915/530/1160 |
1050/640/1164 |
700/575/1190 |
重量Weighe |
kg |
91 |
170 |
300 |
