| 訂貨號 | RS-160T,RS-160N,RS-120T, RS-120N | 品牌 | RS系列 | 貨號 | RS-160T,RS-160N,RS-120T, RS-120N |
| 材質 | 球墨鑄鐵 | 型號 | RS-160T | 連接形式 | 法蘭 |
| 適用介質 | 空氣 | 公稱通徑 | 201MM | 結構形式 | 杠桿式 |
| 壓力環境 | 高壓 | 工作溫度 | 高溫 | 標準 | 美標 |
| 流動方向 | 雙向 | 驅動方式 | 伺服 | 零部件及配件 | 閥體 |
| 形態 | 柱塞式 | 類型(通道位置) | 直動式 | 3C閥門類別 | 工業 |
| 規格 | 最大流量,45 | 是否跨境出口專供貨源 | 否 | 進氣口徑 | 201MM |

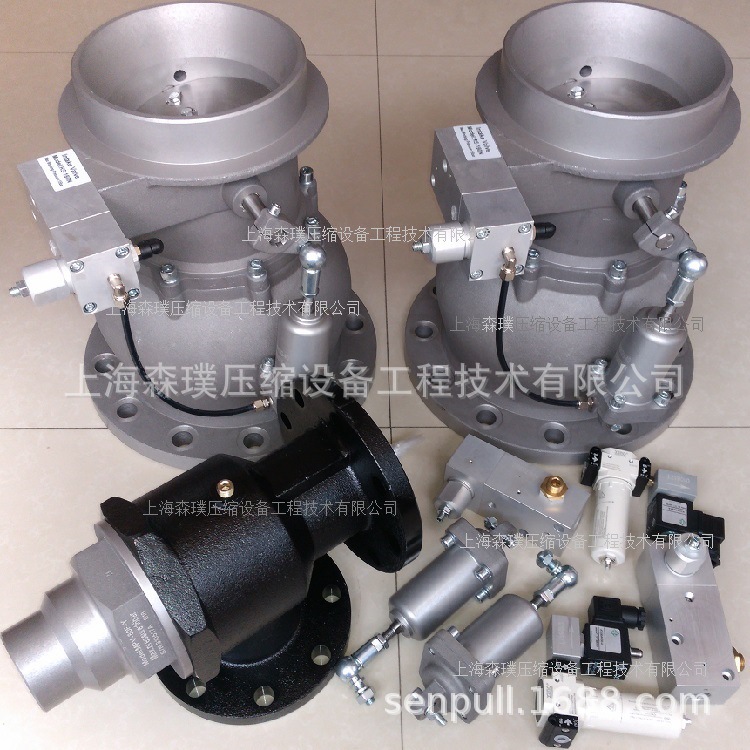

RS系列進氣閥,功能：1.可以實現On/Off或0～100%的氣量調節。 2.自帶止回閥，可以有效地防止?jié)櫥偷沽鳌?nbsp; 3.空壓機卸載時的系統
內部壓力可以通過進氣閥調節。
特點：1.獨特的進氣通道設計，使得采用活塞式止回的RS系列進氣閥與采用重錘式止回的進氣閥的壓力損失相當。
2.RS系列將泄放閥、反比例閥、電磁閥集成為一體，安裝時只需兩根氣管、一路電源接至進氣閥即可，大大縮短了裝配工時，減少了泄漏點。
3.反比例閥只在氣量調節時排氣，正常加載運行時不會排氣，相比常規反比例閥更節能。
進氣閥型號：AIV-25B-K,AIV-25L-K,AIV-25Y-K,AIV-40A-K,AIV-40B-K,AIV-40B-E,AIV-50R-S,AIV-50A-LR,AIV-50B-S,AIV-65A-S,AIV-65C-S,AIV-85A-F,AIV-85B-F,AIV-120B-K,RS-120T,RS-160T,LF-200；RH-50E,RH-90E,RH-120E,RH-160N-A,RH-200N-A,RS-120A,RS-120N,RS-160N,進氣閥，進氣閥組，空壓機進氣閥，螺桿空壓機進氣閥，進氣蝶閥，進氣閥，進氣控制閥，進氣控制閥組，卸荷閥，卸載閥，空壓機進氣閥，空壓機卸荷閥
RS series valve features: 1, can achieve On/Off or 0 ~ 100% gas regulation. 2with check valve, it can effectively prevent the lubricating oil flow. 3 air compressor unloading system
The internal pressure can be regulated through the air inlet valve.
Features: 1 unique air intake channel design, making use of RS series of air inlet valve piston check back with hammer type check the pressure loss of air inlet valve back quite.
2.RS series will bleed valve, inversely proportional valve, solenoid valves are integrated into a whole, installed only when the two pipe, a power supplyconnected to the air inlet valve, greatly shorten the assembly time, reduce the leak.
3 inverse proportional valve exhaust only in volume regulation, not exhaustnormal loading operation, compared with the conventional inverse proportionalvalve is more energy-saving.
Welcome colleagues from all walks of life come to inquire, negotiate! Detailed inbation to company to claim. We will be first-class products, low prices, high quality service in close cooperation with you and seek common development!
Corporate website: www.senpull.cn
Domestic hotline: 400-6969-728
Technical consultation: 021-51602627 51602681
【 imported compressor international Asia distribution center 】 【 Chinese air compressor spare parts marketing center】
