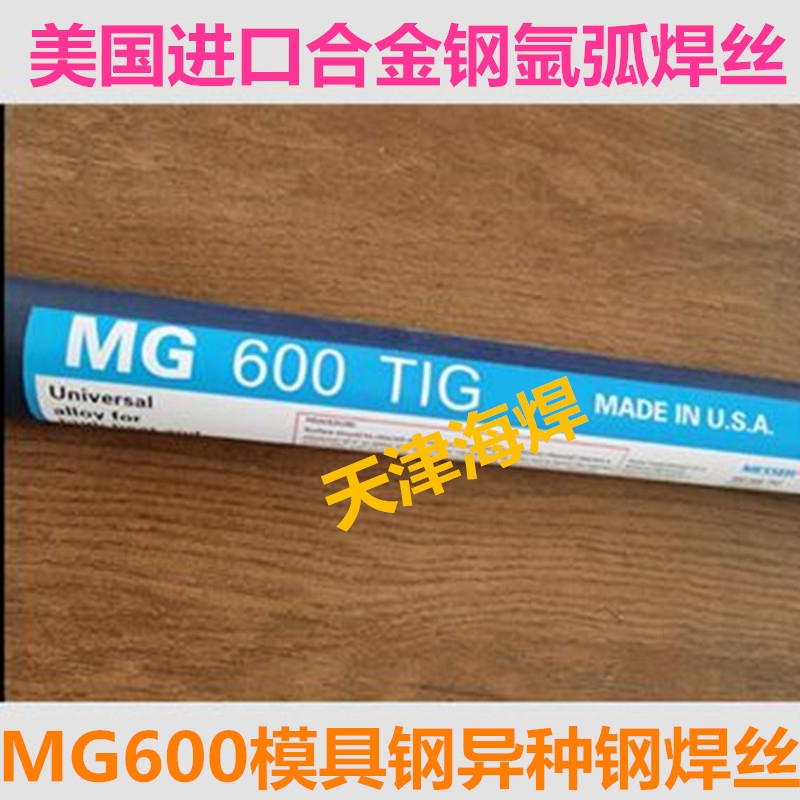

MG 600 TIG
The strongest, problem solving universal
wire for all steels
GENERAL CHARACTERISTICS:
MG 600 TIG is a premium wire that provides dense, porosity free deposits that are strong and crack resistant.
This wire is compatible to all grades and alloys of steel. Also available in a MIG wire.
APPLICATIONS:
Welding low, medium, and high alloy steels requiring the highest strength and quality. Ideal for repair of tools,
dies, springs, carbon steels, stainless steels, pressure vessels, aircraft steels, vanadium-moly spring steels
and as an underlayment or pad prior to applying hard facing alloys. Also used for rebuilding shafts and blades
used in the chemical, construction and mining industries. Tianjin haihan
TECHNICAL DATA:
Typical Tensile Strength
As Welded: up to 120,000 psi (827 N/mm2
)
Work Hardened: up to 180,000 psi (1241 N/mm2
)
Typical Yield Strength Up to 90,000 psi (621 N/mm2
)
Elongation Approx. 35%
Hardness Approx. 300 HB
Polarity DC straight (electrode -)
Shielding Gas 100% Argon
Diameters Available .045” (1.2mm) 1/16” (1.6mm) 3/32” (2.4mm) 1/8” (3.2mm)
PROCEDURE:
Clean material of foreign substances, set beters to range given (appropriate for base bl thickness and
bbbbbbbb). Preheat high carbon steels to 400°F. Use ber beads to minimize overheating and stress.
