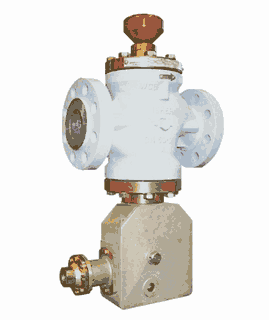

Types?BLE?and?BLX?throttle?valves?function?as?a?bypass?on?transmission?stations?reducing?pressure?up?to?100?bar?/?1450?psig.?Type?BLX?version?is?equipped?with?a?Type?OS2?release?relay?to?cut?off?pressure?flow?in?case?of?outlet?over?pressure.?Types?BLE?and?BLX?are?in?conbity?with?the?Pressure?Equipment?Directive?PED?2014/68-UE?and?are?classified?in?category?IV.?
BLE?和?BLX?型節流閥作為輸送站的旁路使用，壓降最高可達?100?bar?/1450?psig。?BLX?版本配置?OS2?型釋放繼電器，在出口過壓時可切斷壓力流。?BLE?和?BLX?符合壓力設備指令?PED?2014/68-UE，被歸為?IV?類。美國FISHER費希爾簽約代理商廣州奧麗斯特燃?xì)庠O(shè)備有限公司咨詢電話：零二零-捌貳壹柒捌柒伍叁??13423610804?劉小姐
Features
Robust
High?Precision
Progressive?Opening
功能
可靠
精確
逐漸打開
Specifications
Available?Configurations
Type?BLE:?Throttle?Valve
Type?BLX:?Throttle?Valve?with?Shutoff?Valve
Body?Sizes
DN?25,?50,?and?80
NPS?1,?2,?and?3
End?Connection?Styles
PN?100?N,?PN?50?B,?PN?20?B
CL600,?CL300,?CL150
Maximum?Operating?Pressure
LCC?Body:?100?bar,?1450?psig
WWC-20?Body:?96,7?bar,?1402?psig
Temperature?Capabilities
LCC?Body:?Working?-30°?to?71°C,?-22°?to?160°F
WCC-20?Body;?Working:?-20°?to?71°C,?-4?to?160°F
規格
可選配置
BLE?型：節流閥
BLX?型：節流閥帶切斷閥
閥體尺寸
DN?25、50?和?80
NPS?1、2?和?3
端部連接方式
PN?100?N、PN?50?B、PN?20?B
CL600、CL300、CL150
最大工作壓力
LCC?閥體：100?bar，1450?psig
WWC-20?閥體：96.7?bar，1402?psig
溫度適用范圍
LCC?閥體：操作溫度?-30°?至?71°C?（-22°F?至?160°F）
WCC-20?閥體；操作溫度：-20°C?至?71°C?（-4°F?至?160°F）
