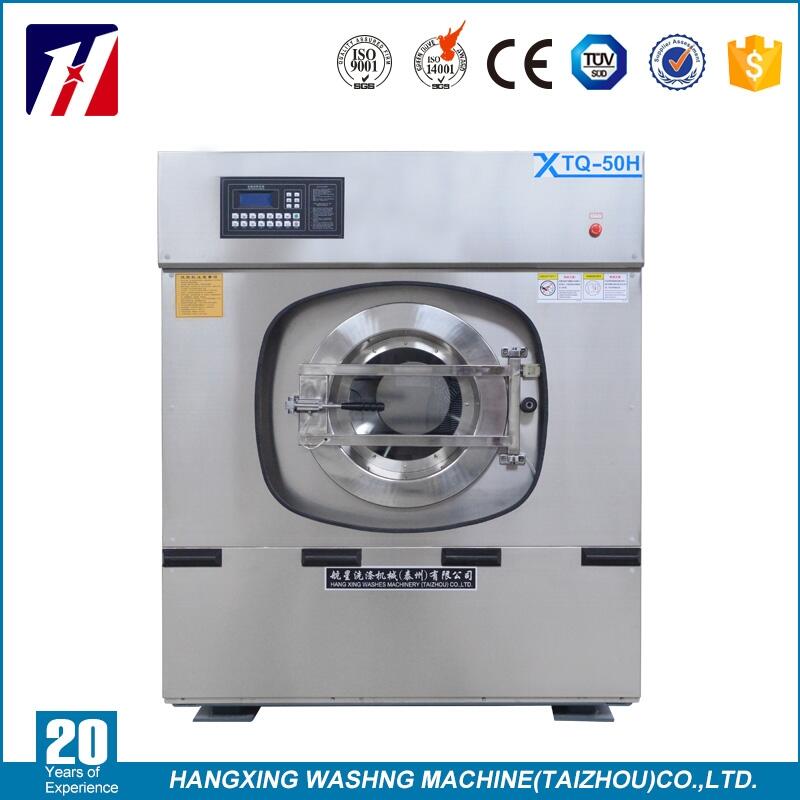

全自動工業洗衣機又稱洗脫機、洗脫兩用機，是一款集水洗、漂洗、脫水多重功能予一體的全自動工業洗衣機產品，其是目前各洗衣房、水洗廠中應用較多的一款水洗設備,適用于賓館、飯店、醫院、服裝廠、洗衣場、工礦企業以及個體洗染行業。用于對各種棉織、毛紡、麻類、化纖、混紡等衣物織品的洗滌。
全自動洗脫機技術參數：
|
?型號?Type |
? ? ? ?XTQ-15H |
? ? ? ?XTQ-20H |
? ? ? ?XTQ-30H |
? ? ? ?XTQ-50H |
? ? ? ?XTQ-70H |
? ? ? ?XTQ-100H |
|
額定容呈 Rated capacity |
15kg |
20kg |
30kg |
50kg |
70kg |
100kg |
|
最小洗滌量 Min.capacity |
10kg |
15kg |
20kg |
35kg |
50kg |
70kg |
|
更大洗滌呈 Max.capacity |
15kg |
20kg |
30kg |
50kg |
70kg |
100kg |
|
內膽尺寸 Drum dimensions |
||||||
|
內膽直徑 Drum diameter |
700mm |
730mm |
900mm |
970mm |
1080mm |
1200mm |
|
內膽徑深 Drum depth |
350mm |
380mm |
460mm |
605mm |
750mm |
820mm |
|
體積Volume |
135Lit. |
159Lit. |
292Lit. |
540Lit. |
687Lit. |
927Lit. |
|
外形尺寸 Overall dimensions |
||||||
|
高 Height |
1650mm |
1650mm |
仃 60mm |
1950mm |
1980mm |
2110mm |
|
深 Depth |
1100mm |
1200mm |
1520mm |
2060mm |
2080mm |
2150mm |
|
寬 Width |
1020mm |
1150mm |
1300mm |
1600mm |
1700mm |
1760mm |
|
轉籠速度 Drum speed |
||||||
|
洗滌轉速 Washing speed |
36r/min |
36r/min |
36r/min |
36r/min |
34r/min |
32r/min |
|
均布轉速 Unibity speed |
72r/min |
72r/min |
72r/min |
72r/min |
68r/min |
64r/min |
|
中脫 Mid speed |
400r/min |
400r/min |
400r/min |
370r/min |
300r/min |
300r/min |
|
高脫 High speed |
800r/min |
800r/min |
800r/min |
750r/min |
670r/min |
670r/min |
|
排水管Drain pipe |
||||||
|
排水管Drain pipe |
φ76mm |
φ76mm |
φ89mm |
φ114mm |
φ114mm |
φ 114mm |
|
進水管 Water inlet |
||||||
|
熱水管 Hot water pipe |
3/4" (φ)20mm) |
3/4" (φ)20mm) |
3/2 " ( φ40mm) |
3/2 " (φ40mm) |
3/2 " (φ40mm) |
2 " (φ50mm) |
|
冷水管 Cold water pipe |
3/4" (φ)20mm) |
3/4" (φ)20mm) |
3/2 " ( φ40mm) |
3/2" (φ40mm) |
3/2 " (φ40mm) |
2 " (φ50mm) |
|
蒸汽管Steam pipe |
||||||
|
蒸汽管Steam pipe |
1/2 " (φ15mm) |
1/2 " (φ15mm) |
3/4" (φ20mm) |
3/4" (φ20mm) |
1" (φ25mm) |
1" (φ25mm) |
|
每缸耗汽量 Steam consumption |
7kg |
8kg |
9 kg |
10kg |
12kg |
13kg |
|
洗滌耗水量 Water consumption |
350kg |
400kg |
550kg |
1000kg |
1300kg |
1650kg |
|
電源 Power supply |
||||||
|
電源 Power supply |
Standard:380+N-3PH-50Hz 三相四線 |
|||||
|
電機功率Motor power |
1.5kw |
2.2kw |
3.0kw |
4.0kw |
5.5kw |
7.5kw |
|
電加熱功率 Electric heating power |
10kw |
15kw |
20kw |
30kw |
45kw |
60kw |
|
機器重雖 Machine weight |
||||||
|
重量 Afeight |
950kg |
1200kg |
1900kg |
2600kg |
2800kg |
3600kg |
|
洗滌方式 Washing Method |
洗滌、均布、中脫、高脫轉速根據需要由變頻器設定 Washing speed,unib speed,middle speed and high speed are set by frequency converter according to the need. |
|||||
注：以上參數僅供參考，實際參數會隨著產品的改進而有細小的出入。
