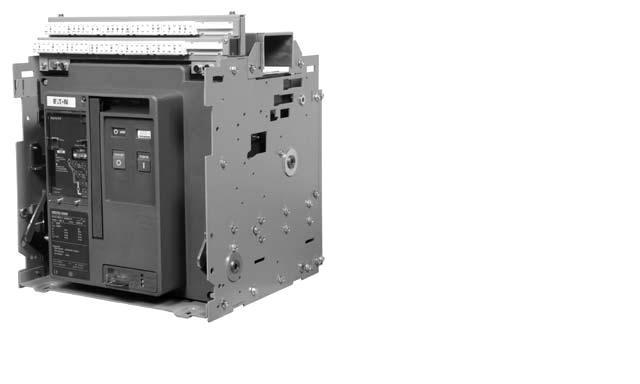

| MOELLER穆勒 空氣斷路器IZM9系列-抽屜式 | |||||
| 保護單元說明： | |||||
| V：選擇性保護型 過載保護，短路短延時和瞬動保護 | |||||
| U：電流表型 過載保護，短路短延時和瞬動保護，電流測量和液晶顯示 | |||||
| 標準配置說明： | |||||
| 包括分合閘線圈（220VAC），儲能電機（220VAC），脫扣指示輔助觸點（2a2b）， | |||||
| 輔助觸點（4a4b），門密封框，接線端子開關電源（只適用于U型脫扣器）： | |||||
| 抽屜式斷路器還包括抽屜座，安全擋板，滅弧罩蓋 | |||||
| 抽屜式 | 3P | 4P | |||
| 型號 | 型號 | ||||
| 42KA | 630 | IZM91B3-V06CW | IZM91B4-V06CW | ||
| 800 | IZM91B3-V08CW | IZM91B4-V08CW | |||
| 1000 | IZM91B3-V10CW | IZM91B4-V10CW | |||
| 1250 | IZM91B3-V12CW | IZM91B4-V12CW | |||
| 1600 | IZM91B3-V16CW | IZM91B4-V16CW | |||
| 50KA | 630 | IZM91N3-V06CW | IZM91N4-V06CW | ||
| 800 | IZM91N3-V08CW | IZM91N4-V08CW | |||
| 1000 | IZM91N3-V10CW | IZM91N4-V10CW | |||
| 1250 | IZM91N3-V12CW | IZM91N4-V12CW | |||
| 1600 | IZM91N3-V16CW | IZM91N4-V16CW | |||
| 65KA | 630 | IZM91H3-V06CW | IZM91H4-V06CW | ||
| 800 | IZM91H3-V08CW | IZM91H4-V08CW | |||
| 1000 | IZM91H3-V10CW | IZM91H4-V10CW | |||
| 1250 | IZM91H3-V12CW | IZM91H4-V12CW | |||
| 1600 | IZM91H3-V16CW | IZM91H4-V16CW | |||
| 42KA | 630 | IZM91B3-U06CW | IZM91B4-U06CW | ||
| 800 | IZM91B3-U08CW | IZM91B4-U08CW | |||
| 1000 | IZM91B3-U10CW | IZM91B4-U10CW | |||
| 1250 | IZM91B3-U12CW | IZM91B4-U12CW | |||
| 1600 | IZM91B3-U16CW | IZM91B4-U16CW | |||
| 50KA | 630 | IZM91N3-U06CW | IZM91N4-U06CW | ||
| 800 | IZM91N3-U08CW | IZM91N4-U08CW | |||
| 1000 | IZM91N3-U10CW | IZM91N4-U10CW | |||
| 1250 | IZM91N3-U12CW | IZM91N4-U12CW | |||
| 1600 | IZM91N3-U16CW | IZM91N4-U16CW | |||
| 65KA | 630 | IZM91H3-U06CW | IZM91H4-U06CW | ||
| 800 | IZM91H3-U08CW | IZM91H4-U08CW | |||
| 1000 | IZM91H3-U10CW | IZM91H4-U10CW | |||
| 1250 | IZM91H3-U12CW | IZM91H4-U12CW | |||
| 1600 | IZM91H3-U16CW | IZM91H4-U16CW | |||
| MOELLER穆勒 空氣斷路器IZM9系列-固定式 | |||||
| 固定式 | 3P | 4P | |||
| 型號 | 型號 | ||||
| 42KA | 630 | IZM91B3-V06CF | IZM91B4-V06CF | ||
| 800 | IZM91B3-V08CF | IZM91B4-V08CF | |||
| 1000 | IZM91B3-V10CF | IZM91B4-V10CF | |||
| 1250 | IZM91B3-V12CF | IZM91B4-V12CF | |||
| 1600 | IZM91B3-V16CF | IZM91B4-V16CF | |||
| 50KA | 630 | IZM91N3-V06CF | IZM91N4-V06CF | ||
| 800 | IZM91N3-V08CF | IZM91N4-V08CF | |||
| 1000 | IZM91N3-V10CF | IZM91N4-V10CF | |||
| 1250 | IZM91N3-V12CF | IZM91N4-V12CF | |||
| 1600 | IZM91N3-V16CF | IZM91N4-V16CF | |||
| 65KA | 630 | IZM91H3-V06CF | IZM91H4-V06CF | ||
| 800 | IZM91H3-V08CF | IZM91H4-V08CF | |||
| 1000 | IZM91H3-V10CF | IZM91H4-V10CF | |||
| 1250 | IZM91H3-V12CF | IZM91H4-V12CF | |||
| 1600 | IZM91H3-V16CF | IZM91H4-V16CF | |||
| 42KA | 630 | IZM91B3-U06CF | IZM91B4-U06CF | ||
| 800 | IZM91B3-U08CF | IZM91B4-U08CF | |||
| 1000 | IZM91B3-U10CF | IZM91B4-U10CF | |||
| 1250 | IZM91B3-U12CF | IZM91B4-U12CF | |||
| 1600 | IZM91B3-U16CF | IZM91B4-U16CF | |||
| 50KA | 630 | IZM91N3-U06CF | IZM91N4-U06CF | ||
| 800 | IZM91N3-U08CF | IZM91N4-U08CF | |||
| 1000 | IZM91N3-U10CF | IZM91N4-U10CF | |||
| 1250 | IZM91N3-U12CF | IZM91N4-U12CF | |||
| 1600 | IZM91N3-U16CF | IZM91N4-U16CF | |||
| 65KA | 630 | IZM91H3-U06CF | IZM91H4-U06CF | ||
| 800 | IZM91H3-U08CF | IZM91H4-U08CF | |||
| 1000 | IZM91H3-U10CF | IZM91H4-U10CF | |||
| 1250 | IZM91H3-U12CF | IZM91H4-U12CF | |||
| 1600 | IZM91H3-U16CF | IZM91H4-U16CF | |||
