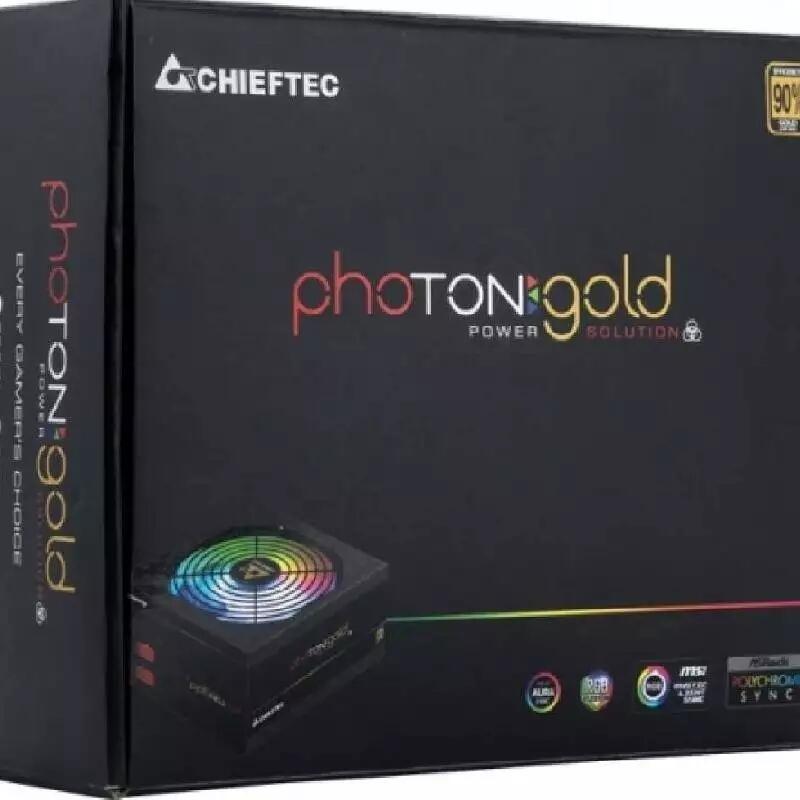

| Model | PHOTON GOLD 650W |
|---|---|
| Article no. | GDP-650C-RGB |
| EAN code | 0753263075895 |
| Weight (without/with package) | 2,12 kg/ 2,52 kg |
| AC Input | 200-240V / 5.0A |
| Frequency | 47 - 63Hz |
| +5V | 20A |
| +3,3V | 20A |
| +5V & +3,3V combined | 120W |
| +12V1 | 53A |
| +12V2 | - |
| +12V1, +12V2 combined | 636W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 650W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 6 |
| MOLEX/FLOPPY | 3/1 |
| 20+4 PIN ATX | 550 |
|---|---|
| 8 PIN EPS (4+4) | 550 |
| 8 PIN PCIe (6+2) | 2x 550/150 |
| SATA | 2x 550/150/150 |
| MOLEX/FLOPPY | 550/150/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >90% |
| Dimension (DxWxH) | 160 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 140mm silent RGB Rainbow fan |
| Security |
AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Chieftec IARENA GPC-400S GPC-500S GPC-600S GPC-700S 智拓服務器電源Chieftec PHOTON GDP-650C-RGB GDP-750C-RGB 智拓 工作站電源Chieftec PHOTON CTG-650C-RGB CTG-750C-RGB 智拓 工控機電源Chieftec POLARIS PPS-550FC PPS-650FC PPS-750FC PPS-850FC PPS-1050FC PPS-1250FC智拓服務器電源Chieftec POWER SMART GPS-450C GPS-550C GPS-650C GPS-750C GPS-1000C GPS-1250C GPS-1350C GPS-1450C 智拓工業電源 開關電源供應器Chieftec智拓全線工業電源批發及電源維修
| Model | IARENA 400W |
|---|---|
| Article no. | GPC-400S |
| EAN code | 4710713234123 |
| Weight (without/with package) | 1.2kg / 1.32kg |
| AC Input | 230V / 3A |
| Frequency | 50 Hz |
| +5V | 15A |
| +3,3V | 21A |
| +5V & +3,3V combined | 103W |
| +12V1 | 30A |
| +12V2 | - |
| +12V1, +12V2 combined | 360W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 400W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | - |
| SATA | 4 |
| MOLEX/FLOPPY | 2 |
| 20+4 PIN ATX | 400 |
|---|---|
| 8 PIN EPS(4+4) | 500 |
| 8 PIN PCIe (6+2) | - |
| SATA | 2x 350/150 |
| MOLEX/FLOPPY | /150 |
| ATX12V Version | ATX 12V 2.4 |
|---|---|
| Efficiency | 80% |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security |
AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
