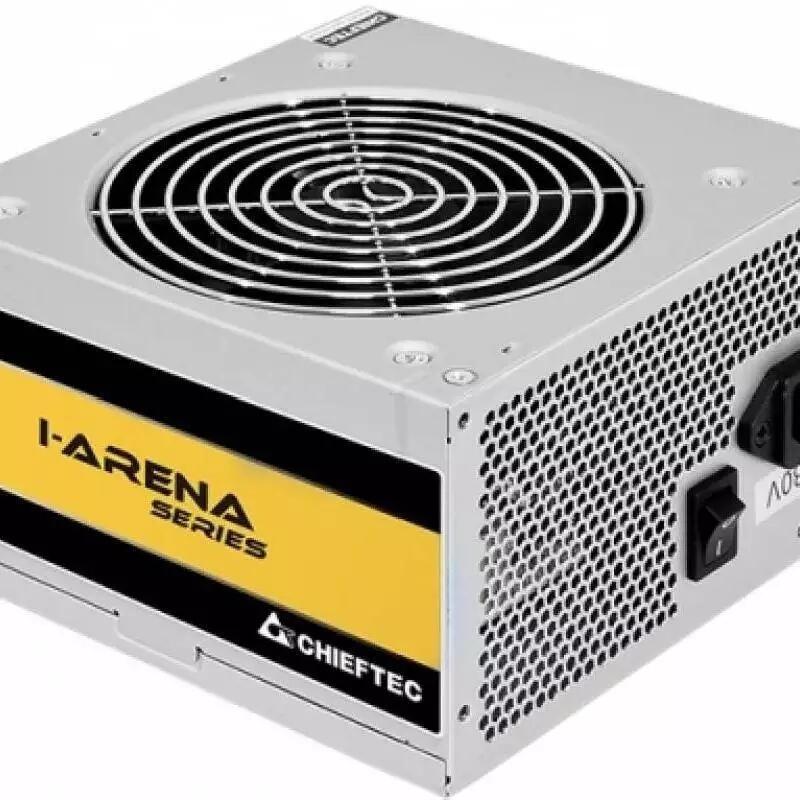

Chieftec IARENA GPA-550S GPA-600S GPA-650S GPA-700S ATX 12V 2.3智拓臺式機電源Chieftec IARENA GPB-350S GPB-400S GPB-450S GPB-500S ATX 12V 2.3智拓工業電源Chieftec智拓電源供應器Chieftec智拓全線工業電源批發及電源維修TEL:13910098771
| Model | IARENA 550W |
|---|---|
| Article no. | GPA-550S |
| EAN code | 4710713233195 |
| Weight (without/with package) | 1.37kg / 1.5kg |
| AC Input | 200-240V / 4.0A |
| Frequency | 47 - 63Hz |
| +5V | 18A |
| +3,3V | 18A |
| +5V & +3,3V combined | 110W |
| +12V1 | 42A |
| +12V2 | - |
| +12V1, +12V2 combined | 504W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 550W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 4 |
| MOLEX/FLOPPY | 2/1 |
| 20+4 PIN ATX | 500 |
|---|---|
| 8 PIN EPS(4+4) | 500 |
| 8 PIN PCIe (6+2) | 500/150 |
| SATA | 2x 500/150 |
| MOLEX/FLOPPY | 500/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | <80% |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security |
AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Chieftec IARENA GPA-350SB GPA-400SB GPA-450SB GPA-500SB ATX 12V 2.3 智拓小機箱電源Chieftec IARENA GPA-550S GPA-600S GPA-650S GPA-700S ATX 12V 2.3智拓臺式機電源Chieftec IARENA GPB-350S GPB-400S GPB-450S GPB-500S ATX 12V 2.3智拓工業電源Chieftec智拓電源供應器Chieftec智拓全線工業電源批發及電源維修
| Model | IARENA 350W |
|---|---|
| Article no. | GPA-350S8 |
| EAN code | 4710713238923 |
| Weight (without/with package) | 1.15kg / 1.29kg |
| AC Input | 200-240V / 3.0A |
| Frequency | 47 - 63Hz |
| +5V | 16A |
| +3,3V | 15A |
| +5V & +3,3V combined | 90W |
| +12V1 | 26A |
| +12V2 | - |
| +12V1, +12V2 combined | 312W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 350W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | - |
| SATA | 3 |
| MOLEX/FLOPPY | 2/1 |
| 20+4 PIN ATX | 350 |
|---|---|
| 8 PIN EPS(4+4) | 350 |
| 8 PIN PCIe (6+2) | - |
| SATA | 350/150/150 |
| MOLEX/FLOPPY | 350/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >85% |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security |
AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Chieftec FORCE CPS-350S CPS-400S CPS-450S CPS-500S CPS-550S CPS-600S CPS-650S CPS-750S ATX 12V 2.3 智拓 工控機電源Chieftec IARENA GPA-350SB GPS-400SB GPS-450SB GPA-500SB ATX 12V 2.3 智拓小機箱電源Chieftec IARENA GPA-550S GPA-600S GPA-650S GPA-700S ATX 12V 2.3智拓臺式機電源Chieftec IARENA GPB-350S GPB-400S GPB-450S GPB-500S ATX 12V 2.3智拓工業電源Chieftec智拓電源供應器Chieftec智拓全線工業電源批發及電源維修
| Model | FORCE 350W |
|---|---|
| Article no. | CPS-350S |
| EAN code | 4710713233287 |
| Weight (without/with package) | 1.42kg / 1.79kg |
| AC Input | 230V |
| Frequency | 50 Hz |
| +5V | 15A |
| +3,3V | 21A |
| +5V & +3,3V combined | 103W |
| +12V1 | 27A |
| +12V2 | - |
| +12V1, +12V2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 350W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | - |
| SATA | 4 |
| MOLEX/FLOPPY | 2 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS(4+4) | 500 |
| 8 PIN PCIe (6+2) | - |
| SATA | 2x 350/ 150 |
| MOLEX/FLOPPY | /150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >85% |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security |
AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
