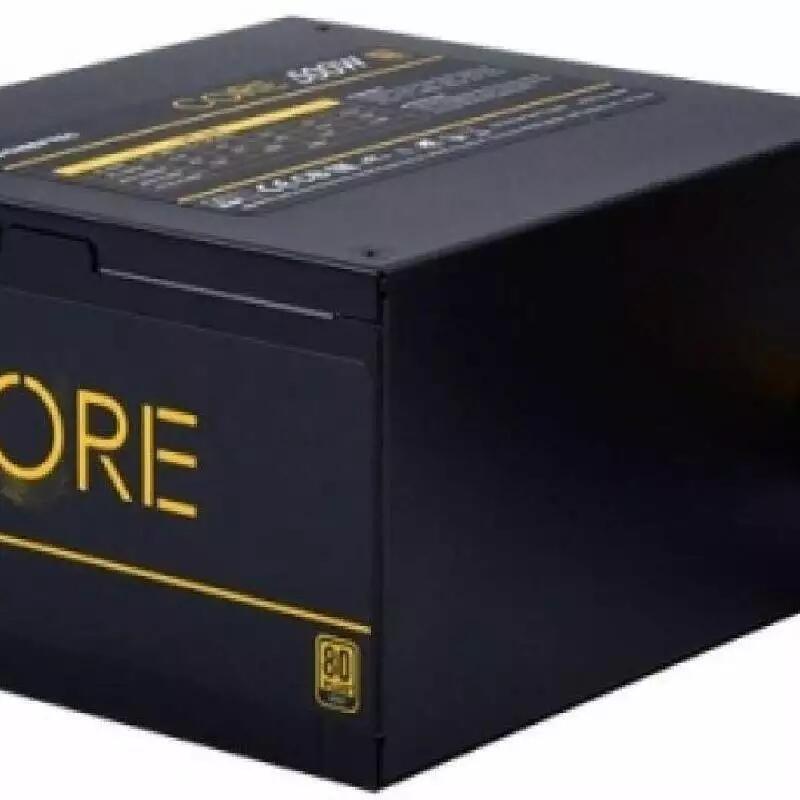

| Model | CORE 500W |
|---|---|
| Article no. | BBS-500S |
| EAN code | 0753263076120 |
| Weight (Net/Gross) | 1.68kg / 2.47kg |
| AC Input | 100-240V / 8.0A |
| Frequency | 47 - 63Hz |
| +5V | 18A |
| +3,3V | 18A |
| +5V & +3,3V combined | 100W |
| +12V1 | 41A |
| +12V2 | - |
| +12V1, +12V2 combined | 492W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 500W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 1 |
| SATA | 4 |
| MOLEX/FLOPPY | 3/1 |
| 20+4 PIN ATX | 650 |
|---|---|
| 8 PIN EPS(4+4) | 650 |
| 8 PIN PCIe (6+2) | 500 |
| SATA |
1x 500/150/150 1x 500 |
| MOLEX/FLOPPY | 500/150/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 140mm x 150mm x 86mm |
| PFC | Active PFC |
| Fan | 120mm silent fan |
| Security |
AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Chieftec CSN-450C CSN-550C CSN-650C SFX開關電源Chieftec智拓小機箱電源Chieftec BBS-500S BBS-600S BBS-700S ATX開關電源Chieftec智拓工業電源Chieftec GPE-400S GPE-500S GPE-600S GPE-700S ATX開關電源Chieftec智拓服務器電源Chieftec ELP-350S ELP-400S ELP-500S ELP-600S ELP-700S ATX開關電源Chieftec智拓電源供應器Chieftec智拓全線工業電源批發及電源維修
| Model | COMPACT 450W |
|---|---|
| Article no. | CSN-450C |
| EAN code | 0753263076199 |
| Weight (without/with package) |
|
| AC Input | 100 - 240V / 6A |
| Frequency | 47 - 63Hz |
| +5V | 15A |
| +3,3V | 18A |
| +5V & +3,3V combined | 90W |
| +12V1 | 37.5A |
| +12V2 | - |
| +12V1, +12V2 combined | 450W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 3,0A / 15W |
| Maximum Power | 450W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX/FLOPPY | 3/1 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS(4+4) | 450 |
| 8 PIN PCIe (6+2) | 2x450 |
| SATA | 2x 450/150/150 |
| MOLEX/FLOPPY | 450/150/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 100 mm x 125 mm x 64 mm |
| PFC | Active PFC (0,9) |
| Fan | 80mm silent fan |
| Security |
AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
