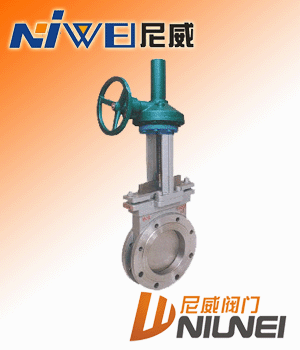

PZ573H/Y傘齒輪對夾式刀型閘閥
刀型閘閥主要外形及連接尺寸(mm)
|
MPa |
DN |
L |
D1 |
D2 |
H |
n-M |
MPa |
DN |
L |
D1 |
D2 |
H |
n-M |
|
0.6 |
50 |
43 |
90 |
110 |
475 |
4-M12 |
1.0 |
50 |
43 |
100 |
125 |
475 |
4-M16 |
|
65 |
46 |
110 |
130 |
500 |
4-M12 |
65 |
46 |
120 |
145 |
500 |
4-M16 | ||
|
80 |
46 |
125 |
150 |
535 |
4-M16 |
80 |
46 |
135 |
160 |
535 |
4-M16 | ||
|
100 |
52 |
145 |
170 |
605 |
4-M16 |
100 |
52 |
155 |
180 |
605 |
8-M16 | ||
|
125 |
56 |
175 |
200 |
665 |
8-M16 |
125 |
56 |
185 |
210 |
665 |
8-M16 | ||
|
150 |
56 |
200 |
225 |
765 |
8-M16 |
150 |
56 |
210 |
240 |
765 |
8-M20 | ||
|
200 |
60 |
255 |
280 |
880 |
8-M16 |
200 |
60 |
265 |
295 |
880 |
8-M20 | ||
|
250 |
68 |
310 |
335 |
1020 |
12-M16 |
250 |
68 |
320 |
350 |
1020 |
12-M20 | ||
|
300 |
78 |
362 |
395 |
1220 |
12-M20 |
300 |
78 |
368 |
400 |
1220 |
12-M20 | ||
|
350 |
78 |
412 |
445 |
1375 |
12-M20 |
350 |
78 |
428 |
460 |
1375 |
16-M20 | ||
|
400 |
102 |
462 |
495 |
1560 |
16-M20 |
400 |
102 |
482 |
515 |
1560 |
16-M22 | ||
|
450 |
114 |
518 |
550 |
1720 |
16-M20 |
450 |
114 |
532 |
565 |
1720 |
20-M22 | ||
|
500 |
127 |
568 |
600 |
1870 |
16-M20 |
500 |
127 |
585 |
620 |
1870 |
20-M22 | ||
|
600 |
154 |
670 |
705 |
2220 |
20-M22 |
600 |
154 |
685 |
725 |
2220 |
20-M27 | ||
|
700 |
165 |
775 |
810 |
2570 |
24-M22 |
700 |
165 |
800 |
840 |
2570 |
24-M27 | ||
|
800 |
190 |
880 |
920 |
3030 |
24-M27 |
800 |
190 |
898 |
950 |
3030 |
24-M30 | ||
|
900 |
203 |
980 |
1020 |
3430 |
24-M27 |
900 |
203 |
1005 |
1050 |
3430 |
28-M30 | ||
|
1000 |
216 |
1080 |
1120 |
3470 |
28-M27 |
1000 |
216 |
1110 |
1160 |
3470 |
28-M30 | ||
|
1200 |
254 |
1295 |
1340 |
4230 |
32-M30 |
1200 |
254 |
1325 |
1380 |
4230 |
32-M36 |
