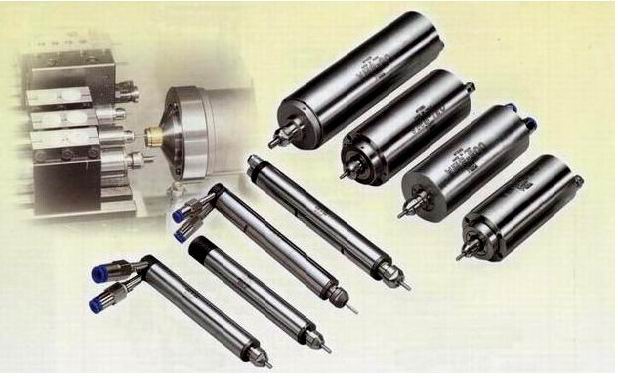

NSK氣鉆SPINDLE | ||||
|
編號(hào) |
氣鉆名稱 |
外徑 |
轉(zhuǎn)速 |
功率 |
|
1021 |
AM-300R |
22.8mm |
30,000min-1(rpm) |
57W |
|
1083 |
AM-300L |
22.8mm |
30,000min-1(rpm) |
57W |
|
1018 |
AM-300RA |
22.8mm |
30,000min-1(rpm) |
57W |
|
1084 |
AM-300LA |
22.8mm |
30,000min-2(rpm) |
57W |
|
1079 |
AM-310R |
22.8mm |
30,000min-2(rpm) |
108W |
|
1085 |
AM-310L |
22.8mm |
30,000min-2(rpm) |
108W |
|
1081 |
AM-310RA |
22.8mm |
30,000min-2(rpm) |
108W |
|
1082 |
AM-310LA |
22.8mm |
30,000min-2(rpm) |
108W |
|
1071 |
AM-600R |
22.8mm |
58,000min-1(rpm) |
76W |
|
2512 |
AM-600RA |
22.8mm |
55,000min-1(rpm) |
69W |
|
8220 |
NR-2351 |
22.8mm |
30,000min-1(rpm) |
|
|
1020 |
NR-301 |
22.8mm |
30,000min-1(rpm) |
|
|
1020 |
NR-2301 |
22.8mm |
30,000min-1(rpm) |
|
|
2511 |
NR-310 |
22.8mm |
30,000min-1(rpm) |
|
|
1073 |
NR-601 |
22.8mm |
60,000min-1(rpm) |
|
|
1801 |
AM-2526R |
25mm |
24,000min-1(rpm) |
130W |
|
1802 |
AM-2526L |
25mm |
24,000min-1(rpm) |
130W |
|
1803 |
AM-2526RA |
25mm |
22,000min-1(rpm) |
120W |
|
1804 |
AM-2526LA |
25mm |
22,000min-1(rpm) |
120W |
|
8333 |
EM25-5000-J4 |
25mm |
50,000min-1(rpm) |
125W |
|
1819 |
NR-2551 |
25mm |
50,000min-1(rpm) |
|
|
1809 |
NR-2532 |
25mm |
30,000min-1(rpm) |
|
|
1797 |
AM-3020R |
30mm |
19,000min-1(rpm) |
130W |
|
1798 |
AM-3020L |
30mm |
19,000min-1(rpm) |
130W |
|
1799 |
AM-3020RA |
30mm |
18,000min-1(rpm) |
125W |
|
1800 |
AM-3020LA |
30mm |
18,000min-1(rpm) |
125W |
|
9027 |
EM-405 |
30mm |
40,000min-1(rpm) |
270W |
|
1565 |
NR-402E |
30mm |
40,000min-1(rpm) |
|
|
1565 |
NR-403E |
30mm |
40,000min-1(rpm) |
|
|
1566 |
NR-453E |
30mm |
50,000min-1(rpm) |
|
|
1534 |
AMS-20R |
53mm |
2,200min-1(rpm) |
131W |
|
1528 |
AMS-50R |
53mm |
4,000min-1(rpm) |
131W |
|
1529 |
AMS-150R |
53mm |
15,000min-1(rpm) |
132W |
|
1530 |
AMS-250 |
47mm |
25,000min-1(rpm) |
|
|
名 稱 |
電 源 |
頻 率 |
功 率 |
尺 寸 |
|
NE72 |
AC110V |
50/60Hz |
75W |
W225×D195×H97mm |
|
NE123 |
AC200-240V |
50/60Hz |
150W |
W430×D487×H177mm |
|
NE145 |
AC100-240V |
50/60Hz |
92W |
W108×D156×H175mm |
|
NE147 |
AC100-240V |
50/60Hz |
180W |
W210×D290×H97mm |
|
NE211 |
AC100-240V |
50/60Hz |
350W |
W88×D138×H238mm |
