Hummel航空連接器（M40 Power circular connector）
產品價格：￥1.00元/只
上架日期：2025-07-28
發貨地：上海 浦東新區
供應數量：不限
最少起訂：1只
瀏覽量：19
詳細說明
    詳細參數
    品牌Hummel型號齊全
    加工定制否材質金屬
    耐溫耐高溫型阻燃性一般
    執行質量標準歐標產地其他
    顏色其他
    德國胡默爾Hummel航空連接器（M40 Power circular connector）
    Hummel連接器代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）
    關鍵詞：胡默爾Hummel尼龍電纜接頭，胡默爾Hummel黃銅鍍鎳電纜接頭，胡默爾Hummel不銹鋼電纜接頭
    胡默爾Hummel屏蔽型電纜接頭，胡默爾Hummel防爆型電纜接頭，德國胡默爾Hummel防爆格蘭密封接頭
    胡默爾Hummel尼龍悶蓋，胡默爾Hummel黃銅鍍鎳堵頭，胡默爾Hummel不銹鋼堵頭/變徑接頭/防爆堵頭
    胡默爾Hummel連接器，胡默爾Hummel接線盒，胡默爾Hummel航空插頭，胡默爾Hummel尼龍軟管接頭

    Hummel Circular connectors- 胡默爾Hummel航空連接器
    Hummel電纜接頭代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）
    Hummel Circular connectors，上海頤品自動化科技有限公司(Hummel代理商)

    Hummel Circular connectors（Hummel圓形連接器）

    Hummel連接器代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）

    M40 Power circular connector

    The connector series M40 is suitable for high currents and is preferably used with heavy duty drive applications.

    The high grade bl casing meets all requirements of a rough industrial environment and convinces with a long service life.

    These connectors are locked with the EURO-LOCK-SYSTEM.

    The connection system offers various casing designs and provides reliable EMC protection in the standard designs.



    • Number of poles 2+3+PE, 4+3+PE
    • Cable entry 13 – 28 mm
    • Power transmission up to 55 A
    • Crimp contacts max.16 mm2
    • User-friendly installation
    • TWILOCK-S: pluggable with Speedtec

    M40 Power cable connector

    Housing type Cable
    Material housing brass,
    Zinc Die Cast
    Material housing surface Nickel
    Insert Socket
    Seal type O-Ring
    Material seals/o-rings FKM (FPM),
    NBR
    Temperature range -40°C to +125°C
    Protection class IP 67,
    IP 69 K
    Version
    Shield
    Cable ?
    Number of poles
    Pole picture
    Item-No
    Screw shielded 13 – 18 mm 6 2 + 3 + PE 7.710.623.000
    Screw shielded 13 – 18 mm 8 4 + 3 + PE 7.710.643.000
    Screw shielded 17 – 24 mm 6 2 + 3 + PE 7.710.723.000
    Screw shielded 17 – 24 mm 8 4 + 3 + PE 7.710.743.000
    Screw shielded 21 – 28 mm 6 2 + 3 + PE 7.710.823.000
    Screw shielded 21 – 28 mm 8 4 + 3 + PE 7.710.843.000
    TWILOCK-S shielded 13 – 18 mm 6 2 + 3 + PE 7.716.623.00S
    TWILOCK-S shielded 13 – 18 mm 8 4 + 3 + PE 7.716.643.00S
    TWILOCK-S shielded 17 – 24 mm 6 2 + 3 + PE 7.716.723.00S
    TWILOCK-S shielded 17 – 24 mm 8 4 + 3 + PE 7.716.743.00S
    TWILOCK-S shielded 21 – 28 mm 6 2 + 3 + PE 7.716.823.00S
    TWILOCK-S shielded 21 – 28 mm 8 4 + 3 + PE 7.716.843.00S



    M40 Power coupler connector

    Housing type Coupler
    Material housing brass,
    Zinc Die Cast
    Material housing surface Nickel
    Insert Pin
    Seal type O-Ring
    Material seals/o-rings FKM (FPM),
    NBR
    Temperature range -40°C to +125°C
    Protection class IP 67,
    IP 69 K
    Version
    Shield
    Cable ?
    Number of poles
    Pole picture
    Item-No
    Screw shielded 13 – 18 mm 6 2 + 3 + PE 7.720.623.000
    TWILOCK-S shielded 13 – 18 mm 6 2 + 3 + PE 7.720.623.00S
    Screw shielded 13 – 18 mm 8 4 + 3 + PE 7.720.643.000
    TWILOCK-S shielded 13 – 18 mm 8 4 + 3 + PE 7.720.643.00S
    Screw shielded 17 – 24 mm 6 2 + 3 + PE 7.720.723.000
    TWILOCK-S shielded 17 – 24 mm 6 2 + 3 + PE 7.720.723.00S
    Screw shielded 17 – 24 mm 8 4 + 3 + PE 7.720.743.000
    TWILOCK-S shielded 17 – 24 mm 8 4 + 3 + PE 7.720.743.00S
    Screw shielded 21 – 28 mm 6 2 + 3 + PE 7.720.823.000
    TWILOCK-S shielded 21 – 28 mm 6 2 + 3 + PE 7.720.823.00S
    Screw shielded 21 – 28 mm 8 4 + 3 + PE 7.720.843.000
    TWILOCK-S shielded 21 – 28 mm 8 4 + 3 + PE 7.720.843.00S



    M40 Power panel connector

    Housing type Panel angled
    Material housing Copper-Zinc alloy,
    Zinc Die Cast
    Material housing surface Nickel,
    blue passivated
    Insert Pin,
    Socket
    Seal type O-Ring
    Material seals/o-rings FKM (FPM),
    NBR,
    HNBR
    Temperature range -40°C to +125°C
    Degree?of?Protection 3
    Protection class IP 67,
    IP 69 K
    Characteristic of connection Crimp
    Color contact insert blue
    Material insulating body PBT

    Installation type
    Version
    Shield
    Number of poles
    Pole picture
    Item-No
    Front wall for pin inserts unshielded 6 2 + 3 + PE 7.740.023.000
    Front wall TWILOCK-S unshielded 6 2 + 3 + PE 7.740.023.00S
    Front wall for pin inserts unshielded 8 4 + 3 + PE 7.740.043.000
    Front wall TWILOCK-S unshielded 8 4 + 3 + PE 7.740.043.00S
    Front wall for pin inserts unshielded 6 2 + 3 + PE 7.742.023.000
    Front wall for pin inserts unshielded 8 4 + 3 + PE 7.742.043.000
    Front wall for socket inserts unshielded 6 2 + 3 + PE 7.744.023.000
    Front wall for socket inserts unshielded 8 4 + 3 + PE 7.744.043.000
    - right angled, TWILOCK-S unshielded 6 2 + 3 + PE 7.749.023.00S
    - right angled, TWILOCK-S unshielded 8 4 + 3 + PE 7.749.043.00S

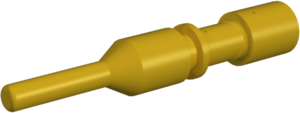

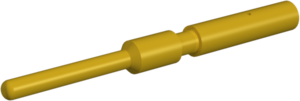

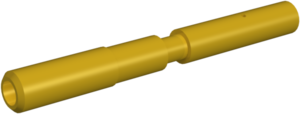

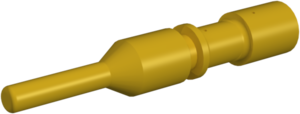

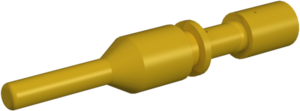

    M40 Power contacts

    Crimp contact
    Crimp range
    Item-No
    M40 Power contacts Crimp pin signal 2 mm machined 1 – 4 mm2 7.015.952.001
    M40 Power contacts Crimp socket signal 2 mm machined 1 – 4 mm2 7.015.952.002
    M40 Power contacts Crimp pin signal 2 mm machined 0.14 – 0.75 mm2 7.015.952.003
    M40 Power contacts Crimp socket signal 2 mm machined 0.14 – 0.75 mm2 7.015.952.004
    M40 Power contacts Crimp pin power 3,6 mm machined 1.5 – 4 mm2 7.015.953.601
    M40 Power contacts Crimp socket power 3,6 mm machined 1.5 – 4 mm2 7.015.953.602
    M40 Power contacts Crimp pin power 3,6 mm machined 6 – 6 mm2 7.015.953.611
    M40 Power contacts Crimp socket power 3,6 mm machined 6 – 6 mm2 7.015.953.612
    M40 Power contacts Crimp pin power 3,6 mm machined 10 – 10 mm2 7.015.953.621
    M40 Power contacts Crimp socket power 3,6 mm machined 10 – 10 mm2 7.015.953.622
    M40 Power contacts Crimp pin power 3,6 mm machined 10 – 10 mm2 7.015.953.623
    M40 Power contacts Crimp socket power 3,6 mm machined 10 – 10 mm2 7.015.953.624
    M40 Power contacts Crimp pin power 3,6 mm machined 16 – 16 mm2 7.015.953.631
    M40 Power contacts Crimp socket power 3,6 mm machined 16 – 16 mm2 7.015.953.632



    M40 Power accessories

    Debion
    Suitable for
    Item-No
    Protection cap Protection cap Circular connector with external thread, M40 Power 7.000.900.151
    Protection cap Protection cap Circular connector with internal thread, M40 Power 7.000.900.152
    Crimp tool Crimp tool Crimp contacts 16 mm2 7.000.900.903
    Crimp head contacts Crimp head contacts 7000900920 7.000.900.919
    Battery crimp tool Battery crimp tool M40 Hybrid, M40 Power 7.000.900.920
    Li-Ion battery 12 V / 2 Ah Li-Ion battery 12 V / 2 Ah 7000900920 7.000.900.923
    Adapter flange - Cable / coupler connector (except TWILOCK/-S) 7.010.900.129
    Locator Locator 7000900920 7.010.900.153
    Locator Locator 7000900920 7.010.900.156
    Adapter - Polyamide DN 25 7.010.900.214
    Adapter - Polyamide DN 23 7.010.900.215
    Adapter - Polyamide DN 32 7.010.900.216
    Adapter - Polyamide DN 29 7.010.900.217
    Protection cap Protection cap Circular connector with external thread, M40 Power 7.015.900.102
    Protection cap Protection cap Circular connector with internal thread, M40 Power 7.015.900.103
    Protection cap with rope Protection cap with rope Circular connector with external thread, M40 Power 7.015.9S1.002
    Protection cap with rope Protection cap with rope Circular connector with internal thread, M40 Power 7.015.9S1.003
